What is a Processing Flowchart in Construction?

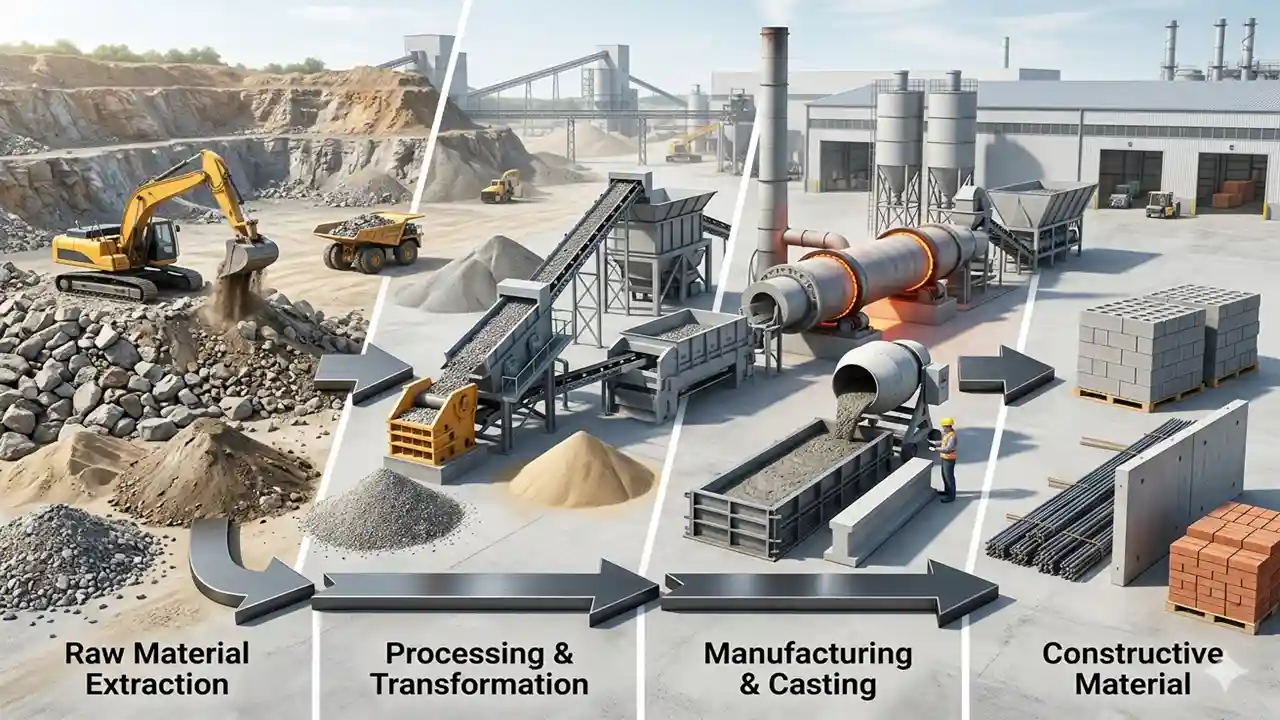

An industrial process map acts as a comprehensive visual baseline for manufacturing plants. It tracks the chronological path of raw inputs from initial site extraction through primary refinement, chemical or mechanical transformation, quality analysis, and final deployment.
When detailing the diagrama de flujo transformación materia prima a material constructivo, engineers gain a rigorous overview of mass balances, thermal thresholds, and operational efficiency markers.
By documenting every single phase within a unified system map, operations managers can rapidly identify structural waste, pinpoint carbon-heavy thermal steps, and optimize energy loads.
It serves as an essential framework for transitioning from traditional linear workflows to highly efficient, modern circular production systems.
4 Critical Processing Flows: Raw to Structural Materials
Diagrama De Flujo Transformación Materia Prima a Material Constructivo base inputs undergo drastically distinct physical and chemical modifications. Let’s look closer at the four most important processing workflows within the sector.
1. Concrete and Cement Synthesis
The production of modern binders depends heavily on complex thermal reactions. In a standardized cement manufacturing line, raw calcium carbonate (limestone) and argillaceous compounds (clay) are extracted, crushed to fine particulates, and thoroughly homogenized.
This mixture enters a high-temperature rotary kiln running at approximately 1450°C. Inside, the raw mix experiences calcination a thermal breakdown that releases carbon dioxide to form calcium oxide. This chemically binds into dark, spherical pellets called clinker.
Once cooled, the clinker is mixed with a small ratio of gypsum and pulverized into standard Portland cement, ready to serve as the hydraulic binder in modern structural concrete.
Loan for Construction of Commercial Property: A Complete Financing Guide
2. Structural Steel Processing
Structural steel provides the essential tensile strength required for modern vertical infrastructure. The industrial flow begins by feeding iron ore, processed coal (coke), and limestone flux directly into a high-capacity blast furnace to yield liquid pig iron.
[Iron Ore + Coke] -> [Blast Furnace] -> [Basic Oxygen Furnace] -> [Continuous Casting] -> [Structural Steel]This molten iron is moved to a Basic Oxygen Furnace (BOF), where high-purity oxygen streams lower its total carbon content to under 2%. Alternatively, modern plants use an Electric Arc Furnace (EAF) to process up to 100% recycled structural scrap metal. The liquid steel is then shaped through continuous casting into structural shapes like beams, bars, and reinforcement rods.
3. Industrial Timber Engineering
Modern mass timber relies heavily on strict mechanical transformation protocols. Harvested raw logs are transported to automated sawmills, where they undergo bark stripping and strategic longitudinal sawing into dimensional lumber boards.
The green lumber is immediately transferred to specialized kiln drying chambers to drop internal moisture content down to a highly stable 12-15%.
This step is absolutely critical to prevent structural warping, shrinking, or deep internal splitting. The dried lumber sections are then sorted by strength, end-joined together using durable structural resins, and pressed to construct high-performance mass timber panels like Cross-Laminated Timber (CLT).
Print Reading for Construction Residential and Light Commercial Answers Ch2
4. Aggregates and Recycled Components
Diagrama De Flujo Transformación Materia Prima a Material Constructivo and fine aggregates form the structural skeleton of all concrete and asphalt matrices. The conventional production flow relies on heavy mechanical processing: drilling and blasting dense granite or limestone rock formations, followed by primary and secondary jaw crushing to reduce size.
[Blasted Rock] -> [Primary/Secondary Crushing] -> [Vibratory Screening] -> [Graded Aggregates]The crushed material passes across multiple layers of vibratory screening decks to sort the stones into precise particle sizes. In modern circular setups, this exact workflow is modified to treat construction and demolition debris. Industrial crushing systems cleanly separate old concrete from interior structural steel, re-grading the clean masonry residue into valuable recycled concrete aggregates.
Integrating Sustainability and Circular Economy Principles
Modern processing facilities face growing pressure to transition away from polluting workflows. Evaluating materials via an integrated diagrama de flujo transformación materia prima a material constructivo allows teams to thoroughly check environmental footprints using structured methodologies.
Research published in the Journal of Life Cycle Assessment in Construction indicates that applying standardized Life Cycle Assessments (LCA) based on ISO 14040/14044 metrics provides plants with the exact data needed to uncover hidden carbon hotspots, map system inputs, and significantly lower emissions.
To achieve real circularity, factories focus heavily on reducing Diagrama De Flujo Transformación Materia Prima a Material Constructivo the total energy expended and greenhouse gases emitted during mining, transport, and refining. Factories achieve this by substituting traditional raw materials with industrial by-products.
For instance, blending fly ash from power utilities or slag from blast furnaces into cement mixes cuts down on the energy needed for thermal calcination.
Additionally, adopting smart material tracking across processing lines helps operators monitor resource life cycles effectively, facilitating future building deconstruction and high-value material recycling.
g-w publishing print reading for construction residential and light commercial
Process Optimization: Designing an Efficient Industrial Flowchart
Building a highly accurate, functional process blueprint requires a systematic engineering approach. Layouts must cleanly track material volumes, temperature adjustments, and necessary equipment interventions.
1.Establish System Boundaries:Define scope.
Map out where your industrial process officially starts and ends. Determine if your tracking covers a basic “cradle-to-gate” manufacturing boundary or a comprehensive “cradle-to-grave” full life cycle model.
2.Log Inputs, Outputs, and Waste Flows:Material audit.
Track every single material entry and exit point. Quantify raw input weights, required water volumes, active electricity draws, fossil fuel usage, and all resulting solid or gaseous waste outputs.
3.Identify Critical Control Points:Quality & thermal checks.
Isolate the operational steps that heavily dictate final product performance or energy consumption, such as kiln heating targets or structural milling tolerances.
4.Embed Feedback Loops:Circular configuration.
Incorporate dedicated return pathways for out-of-specification batches, internal heat recovery channels, or processing runoff filtration to maximize overall resource efficiency.
To maximize utility on the factory floor, operators should combine these structured operational steps with clear, universally recognized visual diagrams. This ensures that every department can quickly audit manufacturing paths and verify that production standards are met.
One Way Slab and Two Way Slab Systems in Construction
Frequently Asked Questions
What is the primary purpose of a “diagrama de flujo transformación materia prima a material constructivo”?
The primary purpose is to visually map and optimize every Diagrama De Flujo Transformación Materia Prima a Material Constructivo stage required to turn raw inputs into usable construction products. This tool enables plants to minimize resource waste, lower production costs, and maintain strict quality control.
How does embodied carbon fit into manufacturing flowcharts?
Embodied carbon tracks the total greenhouse gases emitted across the entire production sequence. By analyzing a detailed process flowchart, operations teams can target energy-heavy thermal steps and integrate cleaner fuels or alternative ingredients to drop their total carbon footprint.
Can recycled structural waste fully replace raw materials?
While aggregate and steel loops can process substantial quantities of recycled structural waste, certain structural elements still require virgin components to meet strict code requirements.
However, blending recycled materials into production drastically reduces overall virgin resource depletion.
Optimizing Production Material Streams
Refining industrial material streams is a proven strategy for lowering operational overhead and improving supply chain resilience.
Utilizing a detailed diagrama de flujo transformación materia prima a material constructivo gives your organization the exact clarity needed to eliminate process bottlenecks, minimize material waste, and satisfy strict environmental mandates.
