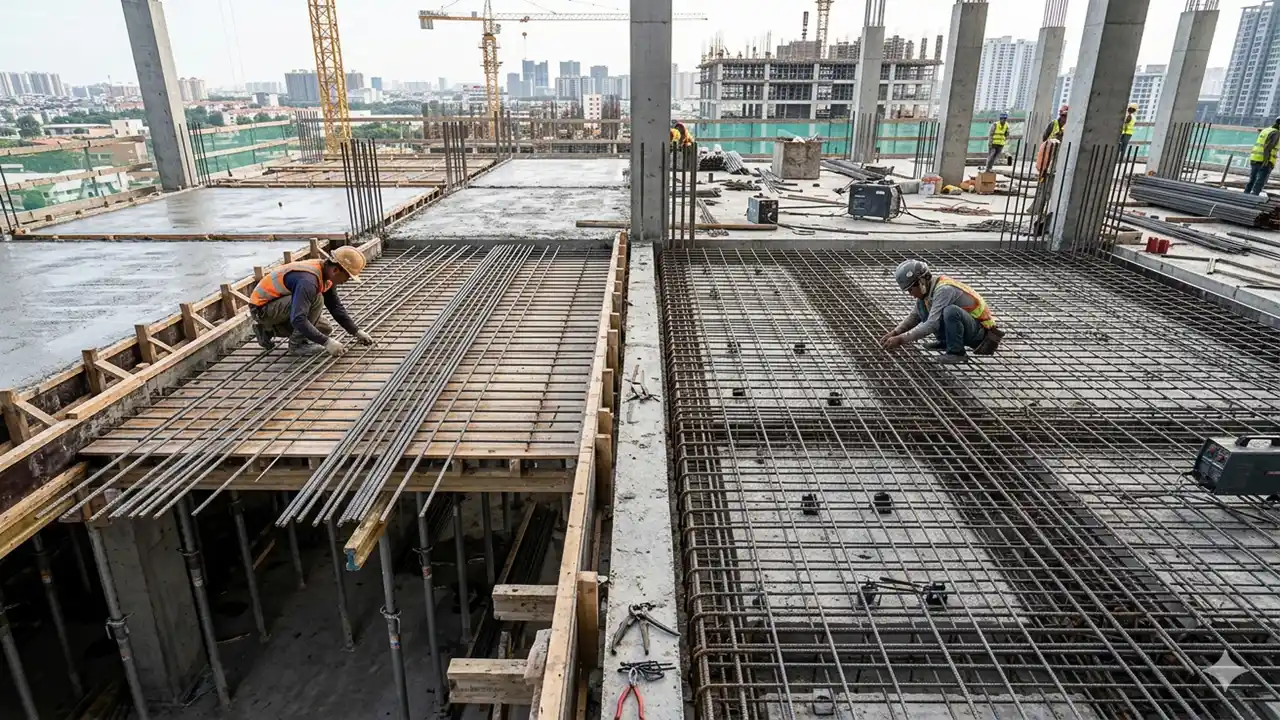

Concrete slabs form the foundation of our indoor spaces, carrying everything from everyday furniture to heavy industrial machinery. However, not all concrete surfaces handle weight the same way. The choice between a one way slab and two way slab impacts your building’s budget, construction speed, and safety.
Whether you are a civil engineering student, a real estate developer, or a curious homeowner planning a new build, this guide breaks down the core structural differences, calculations, and practical applications of these two vital floor systems.
Latest Cement Price for Your Construction Budget
What is a One Way Slab?
A one way slab is a structural concrete element designed to bend and transfer its loads primarily along a single direction. This occurs because the structural panel is supported either by two opposite parallel walls/beams, or because its dimensions force it to bend along its shorter span.
The Mathematics of One-Way Distribution
In structural engineering, the shape of the floor panel dictates how weight travels. The standard rule for a one way slab is based on the aspect ratio of its length to its width:
$$\frac{L_y}{L_x} \geq 2$$
Where $L_y$ represents the longer span and $L_x$ represents the shorter span. When the long side is at least twice the length of the short side, the vast majority of the weight automatically transfers across the short span to the nearest supporting beams.
According to structural design frameworks outlined by The Constructor Civil Engineering Portal, because the bending occurs almost entirely in one direction, primary steel reinforcement bars are placed perpendicular to the supporting beams along the short span.
Secondary steel, known as temperature or shrinkage reinforcement, is mapped out in the opposite direction purely to prevent the concrete from cracking during weather shifts.
What is a Two Way Slab?
A two way slab is a reinforced concrete panel that distributes its load in two perpendicular directions simultaneously. This occurs when the floor panel is supported on all four sides by walls or beams, and the geometric layout is closer to a square than a narrow rectangle.
RCC Full Form: The Foundation of Modern Infrastructure
The Mathematics of Two-Way Distribution
For a floor system to behave as a two way slab, its aspect ratio must satisfy the following condition:
Because the long span ($L_y$) is less than twice the short span ($L_x$), the concrete slab bends into a shallow, dish-like shape under weight. Instead of pushing all the load toward two sides, it spreads the stress outward to all four supporting beams.
Consequently, structural engineers must design primary reinforcement steel running in both directions. This cross-hatched grid creates a highly resilient structure capable of carrying complex, heavier loads across larger square bays.
Key Differences: One Way Slab and Two Way Slab
Understanding the functional distinctions between a one way slab and two way slab makes it easier to optimize material costs and ensure structural stability. The core differences come down to support configuration, bending tendencies, and steel placement.
1. Support Conditions and Aspect Ratio
- One Way Slab: Supported on two opposite sides, or supported on four sides with an aspect ratio ($\frac{L_y}{L_x}$) equal to or greater than 2.
- Two Way Slab: Must be supported on all four sides with an aspect ratio ($\frac{L_y}{L_x}$) less than 2.
2. Bending Behavior and Deflection
- One Way Slab: Bends cylindrically. Imagine holding a piece of paper on two opposite sides; it sags downward forming a simple U-shape curving in one direction.
- Two Way Slab: Bends into a spherical dome or saucer shape. It experiences curvature and structural bending moments along both the X and Y axes.
How to Deal with Construction Site Noise
3. Steel Reinforcement Layout
- One Way Slab: Main structural steel is only laid out across the short span. The long span only gets thin, protective mesh bars to counter temperature expansions.
- Two Way Slab: Heavy, structural mesh goes both ways. Both directions feature calculated, load-bearing steel bars designed to fight bending forces.
Direct Comparison of One Way Slab and Two Way Slab
To simplify your choice during the architectural layout phase, this comparison table highlights the practical trade-offs between a one way slab and two way slab:
| Structural Feature | One Way Slab | Two Way Slab |
| Aspect Ratio Formula | $\frac{L_y}{L_x} \geq 2$ | $\frac{L_y}{L_x} < 2$ |
| Bending Shape | Cylindrical (single direction) | Saucer/Dish-like (two directions) |
| Main Reinforcement | Provided along the short span only | Provided along both perpendicular spans |
| Slab Thickness | Often thicker to control long-span deflection | Typically thinner for identical spans due to multi-directional support |
| Typical Economical Span | 6 to 18 feet (1.8 to 5.5 meters) | 15 to 40 feet (4.5 to 12 meters) |
| Formwork Complexity | Simple, straightforward to construct | Complex, requires intricate joint framing |
Practical Applications in Construction
Deciding whether to build a one way slab and two way slab depends directly on the architectural blueprint of your project.
When to Deploy a One Way Slab
Because they are highly economical for narrow layouts, one way slabs are the industry standard for long, rectangular structural footprints. You will typically see them installed in:
- Verandas, long balconies, and outdoor walkways.
- Narrow corridors in commercial hotels, office spaces, and university dormitories.
- Simple pedestrian footbridges and rectangular storage ramps.
When to Deploy a Two Way Slab
When a structure demands large, open floors without dense foresting of internal columns, two way slabs are the ideal solution. According to structural guidelines published by StructurePoint Engineering, two-way floor systems maximize headroom and minimize concrete volume in massive projects. They are frequently used in:
- Multi-story residential apartment buildings and modern condominiums.
- Expansive commercial office hubs and complex grid layouts.
- Industrial warehouses and multi-level underground parking garages where heavy loads arrive from all angles.
Post Construction Cleaning Services
Final: Making the Right Structural Choice
Choosing between a one way slab and two way slab is not a matter of finding out which type is universally better. Instead, it is about matching your project’s spatial dimensions and weight requirements with the most efficient concrete layout.
Selecting a one way design for a narrow hallway saves time and labor on formwork. Conversely, choosing a two-way layout for a broad living area reduces necessary slab thickness while keeping the building safe and robust.
