Whether you are an aspiring builder, a civil engineering student, or a homeowner overseeing a project, this comprehensive guide breaks down the science, calculations, and proper site practices behind the m20 concrete ratio in plain, everyday language.
What is the M20 Concrete Ratio?
To understand this term, we must look at how standard civil institutions classify concrete. According to the Bureau of Indian Standards (BIS) in their seminal framework IS 456:2000, concrete grades are specified by an alphanumeric designation where “M” represents the “Mix” and the number indicates the characteristic compressive strength (Bureau of Indian Standards, 2000).
Therefore, an M20 grade signifies that the concrete mix will achieve a compressive strength of 20 Megapascals ($20\text{ MPa}$), or roughly 20 Newtons per square millimeter ($20\text{ N/mm}^2$), after exactly 28 days of proper curing (UltraTech Cement, n.d.).
The predetermined m20 concrete ratio for a standard nominal mix is 1:1.5:3. This represents a proportional volume split of three basic ingredients:
- 1 Part: Cement (Binding Agent)
- 1.5 Parts: Fine Aggregate (Sand/Chinasand)
- 3 Parts: Coarse Aggregate (Crushed Stone/Gravel)
Direct Answer: Material Quantities per Cubic Meter
To mix one cubic meter ($1\text{ m}^3$) of dry volumetric concrete using the m20 concrete ratio, you will need approximately 8 bags of cement ($400\text{ kg}$), 0.42 cubic meters of sand, and 0.84 cubic meters of coarse aggregate (UltraTech Cement, n.d.). Maintain a strict water-to-cement ratio between 0.45 and 0.50 to guarantee target strength.
Material Calculation for 1 Cubic Meter of M20 Concrete
Calculating dry ingredients from a wet volume requires compensating for shrinkage. Wet concrete shrinks by roughly 52% to 54% when mixed with water. To find the dry volume needed for $1\text{ m}^3$ of wet finished concrete, engineers multiply by a conversion factor of 1.54.
Using the nominal m20 concrete ratio of 1:1.5:3, the sum of the ratio proportions is:
$$1 + 1.5 + 3 = 5.5$$
Let’s calculate the explicit requirements:
1. Cement Requirement
- Formula: $\text{Volume} = \frac{1}{5.5} \times 1.54 = 0.28\text{ m}^3$
- Since the standard density of cement is $1440\text{ kg/m}^3$:$$0.28 \times 1440 = 403.2\text{ kg}$$
- Dividing by a standard $50\text{ kg}$ bag gives approximately 8 bags of cement (UltraTech Cement, n.d.).
Skid Steer Rental Near Me: Costs, Sizes, and Top Attachments
2. Fine Aggregate (Sand) Requirement
- Formula: $\text{Volume} = \frac{1.5}{5.5} \times 1.54 = 0.42\text{ m}^3$
- In terms of weight (assuming a dry sand density of $1600\text{ kg/m}^3$), this equates to roughly $672\text{ kg}$.
3. Coarse Aggregate Requirement
- Formula: $\text{Volume} = \frac{3}{5.5} \times 1.54 = 0.84\text{ m}^3$
- Using a standard stone gravel density of $1500\text{ kg/m}^3$, this is about $1260\text{ kg}$.

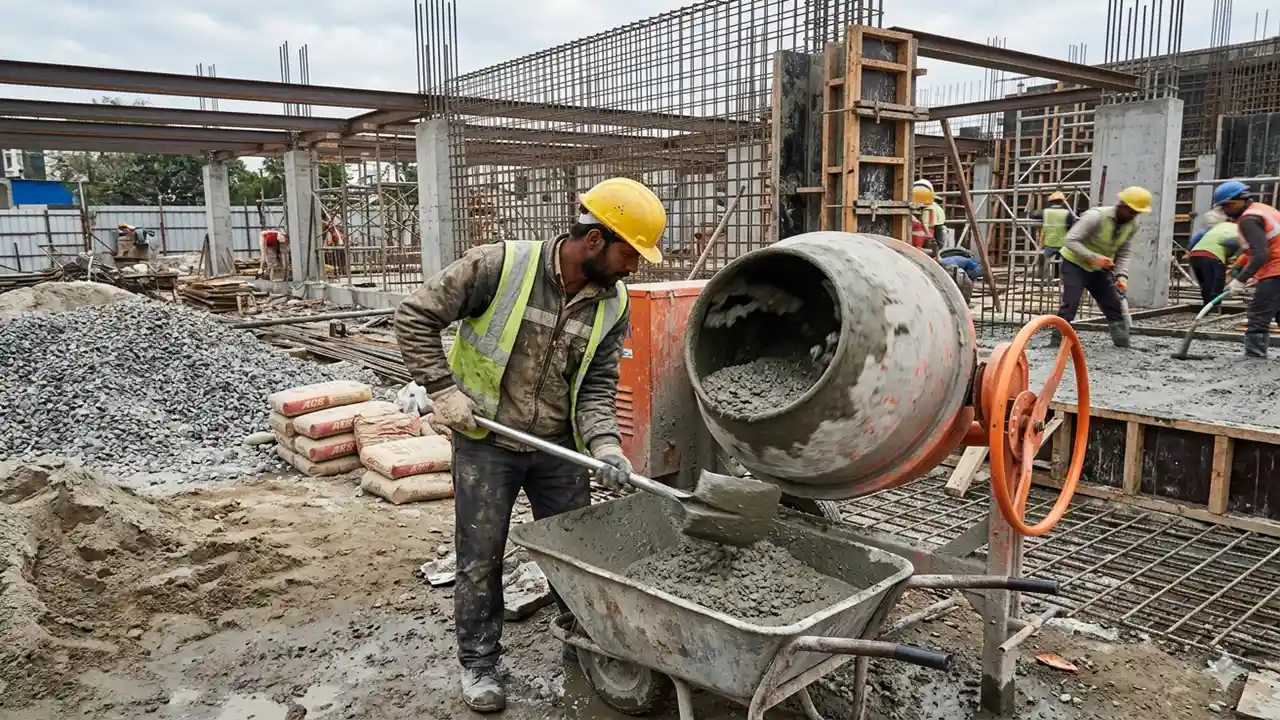

Step-by-Step Guide to Mixing M20 Concrete on Site
Achieving a uniform, durable structural matrix requires following an exact operational sequence. Misordering or rushing these steps can introduce structural flaws like honeycombing or premature cracking.
1.Batching the Materials:Step 1.
Measure out your cement, sand, and gravel accurately using identical containers (like measuring boxes or iron pans) based on the 1:1.5:3 volumetric ratio. Avoid loose shovel estimating.
2.Dry Mixing:Step 2.
Spread the coarse aggregate first, layer the sand directly on top, and add the cement. Mix the dry ingredients thoroughly using shovels or a mechanical mixer until the color becomes uniform and grey throughout.
Finding the Right Skid Steer for Sale
3.Gradual Water Addition:Step 3.
Create a hollow center in the dry pile and gradually add clean, potable water. Keep the water-cement ratio around 0.50—meaning no more than 25 liters of water for every 50 kg bag of cement used.
4.Pouring and Compaction:Step 4.
Place the wet concrete into formworks within 30 minutes of adding water. Use a mechanical needle vibrator to eliminate trapped air pockets and ensure complete encapsulation of the steel reinforcements.
Why the Water-Cement Ratio Changes Everything
A common mistake on small residential building sites is adding excess water to make the slurry easier to spread. However, water acts as a chemical catalyst.
According to standard civil design guidelines outlined by institutions like the Indian Standard Code (IS 456), the maximum allowable water-to-cement ratio for standard reinforced concrete (RCC) under moderate exposure is 0.50 to 0.55 (Kamdhenu Cement, n.d.).
Too Much Water ---> Creates Voids When Evaporated ---> Lowers Compressive Strength
Ideal Water ---> Optimal Hydration Reaction ---> Achieves Target 20 MPaIf the mixture feels unworkable, do not add more water. Instead, use a chemical plasticizer or superplasticizer admixture conforming to IS 9103 to improve liquidity without sacrificing strength (Scribd, 2023).
Applications of M20 Grade Concrete
Why is the m20 concrete ratio so popular? It marks the fundamental boundary line in safety codes. In modern engineering practices, M20 is the absolute minimum grade permitted for Reinforced Cement Concrete (RCC) design works (Bureau of Indian Standards, 2000). Anything weaker, such as M10 or M15, is legally restricted to plain cement concrete (PCC) applications like sub-bases, leveling layers, or garden paths.
Guide to Mini Excavator Rental for Construction Success
Common structural elements utilizing M20 include:
- Foundation footings for single and double-story homes.
- Load-bearing columns and beams.
- Roof slabs and staircase castings.
- Driveways, patios, and moderate-load retaining walls.
Frequently Asked Questions
Can I use the M20 nominal mix for a multi-story commercial complex?
No. For structures higher than two floors or heavily loaded infrastructure, nominal mix profiles are not recommended. Engineers instead mandate a custom Design Mix using IS 10262 protocols, factoring in exact aggregate moisture content, specific gravity, and commercial-grade testing (Testbook, 2025).
What happens if I stop curing M20 concrete after 7 days?
Concrete develops roughly 65% of its strength in the first week, but needs the full 28 days of wet curing to undergo complete crystallization and reach its rated $20\text{ MPa}$ threshold (Kamdhenu Cement, n.d.). Cutting curing short creates weak, powdery surfaces vulnerable to cracks.
Bobcat Skid Steer Guide to Versatility and Power
Final: Get Your Proportions Right
Building a lasting structure relies entirely on sticking to verified engineering proportions. The m20 concrete ratio of 1:1.5:3 strikes the ideal balance between structural reliability, affordability, and physical workability on site.
