What is Bridge Nosing?
At its core, bridge nosing is a specialized material or structural component installed at the edges of an expansion joint. Think of it as a protective “bumper” for the concrete. Expansion joints allow a bridge to expand and contract as temperatures change, but the raw edges of the concrete are brittle.
If left exposed, the impact from heavy truck tires would cause the concrete to “spall” or chip away. Bridge nosing provides a flexible yet incredibly tough transition zone that absorbs impact and prevents the surrounding pavement from breaking down.
The Critical Role of Bridge Nosing in Construction
In the world of civil engineering and bridge nosing applications, the goal is longevity. Modern construction demands materials that can withstand extreme thermal movement and heavy axle loads.
1. Impact Absorption
Every time a vehicle hits an expansion joint, it creates a vertical and horizontal shockwave. High-quality nosing materials, often made of elastomeric concrete or polyurethane, act as a shock absorber. This protects the structural integrity of the bridge deck.
2. Preventing Water Infiltration
Water is the enemy of any bridge. If water leaks through a joint, it can corrode the steel reinforcements (rebar) and the support beams below. A properly installed bridge nosing system creates a watertight seal when paired with a joint gland, ensuring that runoff stays on the surface and moves toward the drainage system.
Types of Materials Used in Bridge Nosing
Not all bridges are created equal, and neither is the nosing used to protect them. The choice of material depends on the climate, the volume of traffic, and the expected movement of the bridge.
Why Concrete Anchors Are Critical in Precast Construction: A Complete Guide
Elastomeric Concrete
This is the “gold standard” for many contractors. It is a multi-component system (usually resin and a specific aggregate) that mimics the strength of concrete but offers the flexibility of rubber. It bonds incredibly well to both steel and concrete.
Polymer Modified Asphalt
Used frequently for maintenance and quick repairs, this material is cost-effective and can be opened to traffic relatively quickly. While not as durable as elastomeric options, it serves well for lower-traffic areas.

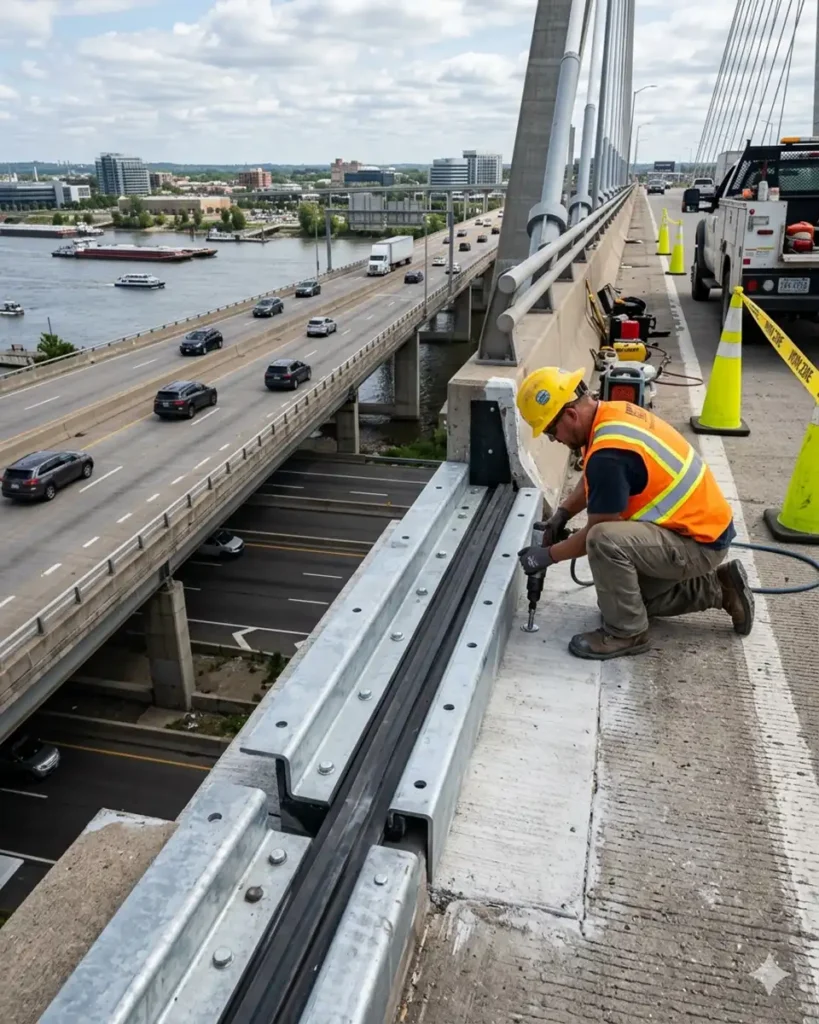

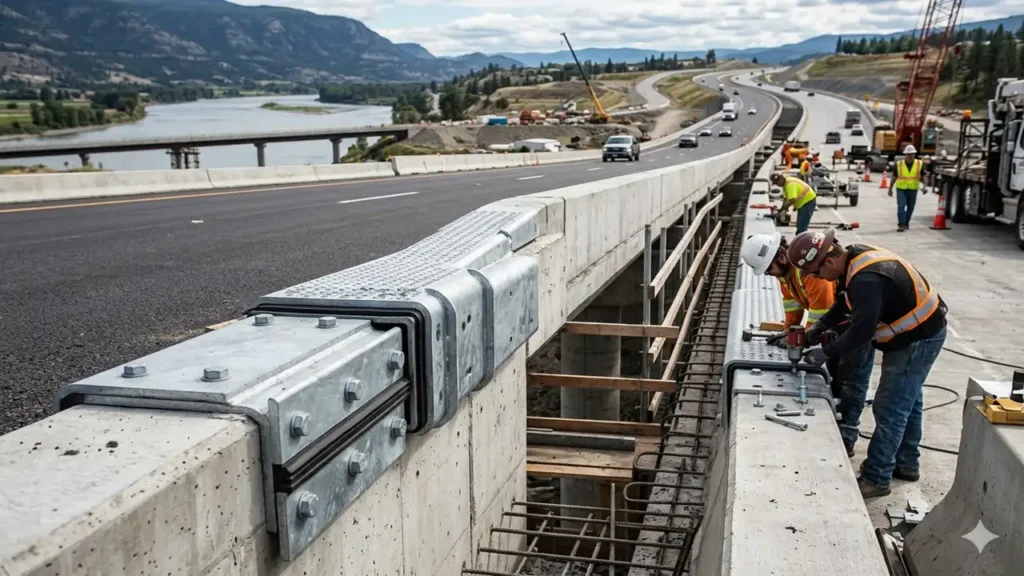

Metal Plate Nosing
In heavy-duty industrial settings, steel or aluminum plates might be used for bridge nosing. These are bolted into the structure and provide a rugged edge, though they require more intensive maintenance to prevent loosening over time.
Step-by-Step: The Installation Process
Installing a bridge nosing system is a precision task. If the bond between the nosing and the existing deck fails, the entire joint will eventually fail.
- Surface Preparation: The concrete must be sandblasted or mechanically abraded to reveal “sound” concrete. Any dust or moisture will ruin the bond.
- Priming: A high-strength primer is applied to ensure the nosing material “bites” into the substrate.
- Mixing and Pouring: The nosing material is mixed on-site. Timing is critical here, as many of these resins have a short “pot life” before they begin to harden.
- Leveling: The material is troweled to be perfectly flush with the road surface to prevent a “bump” that would increase vehicle impact forces.
Understanding H Shear: A Comprehensive Guide to Horizontal Shear Forces
Why Maintenance Cannot Be Ignored
Even the best bridge nosing will face wear and tear. Over time, UV rays, snowplows, and chemical de-icers can degrade the material.
Routine inspections should look for:
- Delamination: Where the nosing pulls away from the concrete.
- Cracking: Signifying the material has become too brittle.
- Debris Buildup: Rocks and dirt trapped in the joint can act like a wedge, forcing the nosing to break during thermal expansion.
Catching these issues early is the difference between a $5,000 repair and a $500,000 structural overhaul.
FAQ
How long does bridge nosing typically last?
With professional installation and high-quality elastomeric materials, a bridge nosing system can last between 10 to 20 years. However, high-traffic corridors with heavy freight may require maintenance sooner.
Can nosing be installed in cold weather?
Most resin-based nosing materials require a minimum temperature (usually above 45°F or 7°C) to cure properly. While there are “cold-cure” versions available, the best results are achieved in dry, temperate conditions.
Is bridge nosing the same as an expansion joint?
Not exactly. The expansion joint is the actual gap and the mechanism (like a rubber seal) that fills it. The bridge nosing is the reinforced edge of the concrete that holds the joint system in place and protects the deck.
Building for the Future
The strength of our infrastructure lies in the details. While the massive steel beams and concrete pillars get all the glory, it is the bridge nosing that keeps the daily wear and tear from turning into a structural nightmare. By choosing the right materials and following rigorous installation standards, we can ensure our bridges remain safe for the next generation of travelers.
